NiuBridge

The NiuBridge System is a comprehensive Engineered Wood Product bridge building system that is a cost-effective solution for refurbishment of existing structures as well as new bridge construction.

The system exploits the structural advantages of sustainable plantation resource manufactured under the controls of a Type 5 ISO 17065 JAS-ANZ product certification scheme.

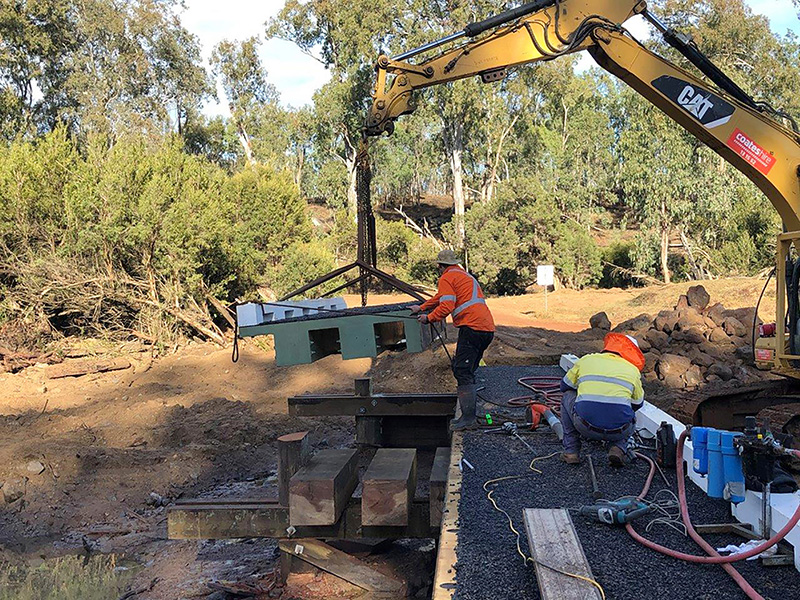

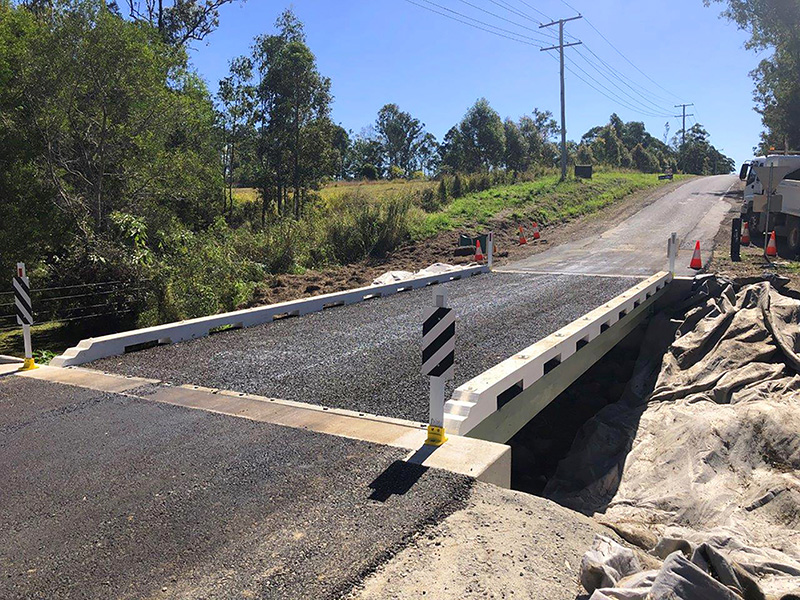

NiuBridge modular bridge system is a light weight system for all spans up to 30m. NiuBridge is suitable for installation on a variety of existing substructures, including timber, heritage masonry, steel and concrete. NiuBridge is also ideally suitable for installation on precast spread footing abutment systems as well as the conventional piles and abutments.

Whether installed onto existing or new substructures NiuBridge Modular is the ideal cost-effective solution with fast and simple installation and is a flexible system that can incorporate site specific requirements without compromising the systems integrity.

Fully protected from decay and termites NiuBridge has a design life of 50+ years.

NiuBridge Key Features

• Installed cost base a fraction of equivalent steel or concrete
• Light weight – minimal crane size required
• Significantly reduced installation time
• Compliant to either Austroads T44 or AS5100 SM1600 loading
• Flexible design options and custom design service
• Option of a pre-applied bituminous deck wearing surface on modules
• Reliable engineering properties
• Sustainable plantation resource
• Alkaline Copper Quaternary (ACQ) H4 “Veneer Treatment” preservation
• Low embodied energy and manufactured using PNGFP Hydro Power.
